Description

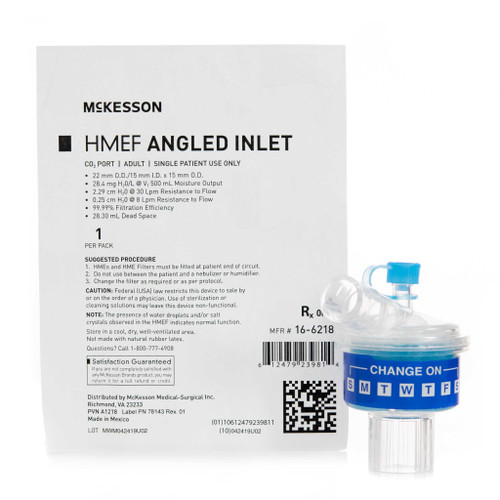

- McKesson Angled Inlet Heat and Moisture Exchanger with CO2 Port
- Mini design allows tidal volumes from 150 mL - 1000 mL for broad use among children and adults
- Angled inlet eliminates need for gas sampling elbow
- For short-term airway humidification
- For the moisture and heat retention for return to the patient and provides filtration for prevention of breathing system contamination
- Optimal choice for enhancing the effectiveness of any breathing systems such as ventilators or anesthesia circuits
- Bacterial/viral filtration efficiencies in excess of 99.9%
- High moisture retention characteristics
- Clear housing to view levels of humidification
- Provide superior moisture output, minimum size, low breathing resistance
- True hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals
- Treated with physiologically safe calcium chloride, hygroscopic membrane traps patient’s moisture providing effective airway humidification
- Low resistance to airflow minimizes work of breathing
- Effective filtration reduces the risk of colonization in breathing tubes and minimizes sampling line blockage
- End tidal CO2 sampling port offers convenient access to airway gases
- Luer gas sampling ports for secure connection
- ISO-standard connections for secure, leak-resistant attachment to breathing systems
- Disposable available in convenient case quantities and individually-wrapped for single patient use
- Not Made with Natural Rubber Latex
- 1 Per Pack, 50 Packs Per Case
| SKU # | 1109620 |
| Manufacturer # | 16-6218 |
| Brand | McKesson |
| Manufacturer | McKesson Brand |
| Country of Origin | Mexico |
| Application | Heat and Moisture Exchanger with Filter |
| Connection Type | 22 mm O.D. / 15 I.D. x 15 O.D. mm Port |
| Dead Space | 28.3 mL |
| Filter Efficiency BFE | 99.9% |
| Filter Efficiency VFE | 99.9% |
| Filter Type | Hygroscopic |
| Is_Active_Vendor | Y |
| Is_DSCSA | N |
| Is_Discontinued | N |
| Is_ECAT | N |
| Is_GSA | N |
| Is_Medical_Device | Y |
| Is_VA | Y |
| Lot_Tracking_Flag | N |
| Moisture Output | 28.4 mg H2O / L @ VT 500 mL |
| On_Allocation | N |
| Port Type | Gas Sampling Port |
| Resistance | 2.29 cm H20 @ 30 LPM, 0.25 cm H20@ 8 LPM |
| Sterility | NonSterile |
| Style | Angled |
| Supplier_ID | 488035 |
| UNSPSC Code | 42272219 |
| User | Adult |
| Volume | 150 to 1000 mL |
| Latex Free Indicator | Not Made with Natural Rubber Latex |
