Description

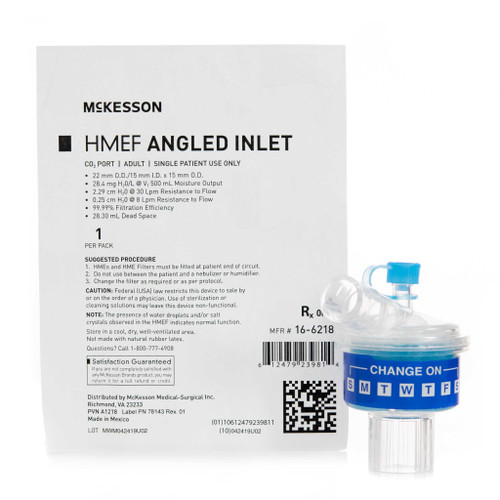

- McKesson Angled Inlet Heat and Moisture Exchanger with CO2 Port
- Mini design allows tidal volumes from 150 mL - 1000 mL for broad use among children and adults
- Angled inlet eliminates need for gas sampling elbow
- For short-term airway humidification
- For the moisture and heat retention for return to the patient and provides filtration for prevention of breathing system contamination
- Optimal choice for enhancing the effectiveness of any breathing systems such as ventilators or anesthesia circuits
- Bacterial/viral filtration efficiencies in excess of 99.9%
- High moisture retention characteristics
- Clear housing to view levels of humidification
- Provide superior moisture output, minimum size, low breathing resistance
- True hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals
- Treated with physiologically safe calcium chloride, hygroscopic membrane traps patients moisture providing effective airway humidification
- Low resistance to airflow minimizes work of breathing
- Effective filtration reduces the risk of colonization in breathing tubes and minimizes sampling line blockage
- End tidal CO2 sampling port offers convenient access to airway gases
- Luer gas sampling ports for secure connection
- ISO-standard connections for secure, leak-resistant attachment to breathing systems
- Disposable available in convenient case quantities and individually-wrapped for single patient use
- Not Made with Natural Rubber Latex
- 1 Per Pack, 50 Packs Per Case
Product Details
- Application:
- Heat and Moisture Exchanger
- Connection Type:
- 22 mm O.D. / 15 I.D. x 15 O.D. mm Port
- Dead Space:
- 28.3 mL
- Filter Efficiency BFE:
- 99.9%
- Filter Efficiency VFE:
- 99.9%
- Filter Type:
- Hygroscopic
- Is_ECAT:
- N
- Is_VA:
- Y
- Latex Free Indicator:
- Not Made with Natural Rubber Latex
- Manufacturer Number:
- 16-6218
- Manufacturer Name:
- McKesson MedSurg
- Moisture Output:
- 28.4 mg H2O / L @ VT 500 mL
- Port Type:
- Gas Sampling Port
- Resistance:
- 2.29 cm H20 @ 30 LPM, 0.25 cm H20@ 8 LPM
- Sterility:
- NonSterile
- Style:
- Angled
- UNSPSC Code:
- 42272219
- User:
- Adult
- Volume:
- 150 to 1000 mL
