Kernel 308nm Excimer LED UVB Phototherapy Lamp – KN308E - for Clinics
Advanced Clinical Phototherapy for Comprehensive Skin Treatment
The Kernel KN308E is a state-of-the-art 308nm Excimer LED UVB phototherapy lamp designed for clinical use, offering a powerful and efficient solution for treating various skin conditions, including vitiligo, psoriasis, eczema, pityriasis rosea, and atopic dermatitis. This device combines cutting-edge technology with user-friendly features to provide healthcare professionals with a reliable tool for effective patient care.
Key Features
Higher-intensity Treatment
- Comparing with KN5000C (Lamp Intensity 50 mw/cm²), the KN308E delivers higher-intensity light (Lamp Intensity 60 mw/cm²) with a generous treatment size, making it ideal for treating larger and stubborn areas on the back, legs, and torso.
Dual Operating Modes for Versatility
- Equipped with both time and dose working modes, clinicians can set precise treatment parameters without manual calculations, ensuring accurate and consistent therapy sessions.
Built-in MED Test for Personalized Care
- The integrated Minimal Erythema Dose (MED) test assists in determining the optimal dosage based on individual skin sensitivity, promoting effective and safe treatments.
Automatic Light Intensity Calibration
- Features a built-in light intensity calibration function that enhances treatment accuracy by ensuring consistent light output.
Additional Features
-
Interchangeable Treatment Tips: Offers multiple tip sizes to accommodate various lesion areas, protecting surrounding healthy skin during therapy.
-
Comprehensive Patient Management: Supports quick case management with fingerprint recognition, storing up to 1,500 patient profiles and 10,000 treatment records per patient for streamlined operations.
-
User-Friendly Interface: The 10.4-inch LCD touch screen facilitates real-time monitoring and seamless control, enhancing the user experience.
Business Transparency
Kernel, founded in 1997, is dedicated to research, development, and manufacturing in the high-tech medical equipment industry, with leading innovations in UV phototherapy devices, colposcopes, and PDT photodynamic therapy devices.
Headquartered in Jiangsu, China, Kernel has offices in more than 30 countries and regions worldwide and is widely praised for its quality, effectiveness, and after-sales service. Kernel's products have been approved by the FDA, CE, and ISO 9001. Ahead of its peers in the medical equipment field, Kernel is also a supplier to the United Nations.

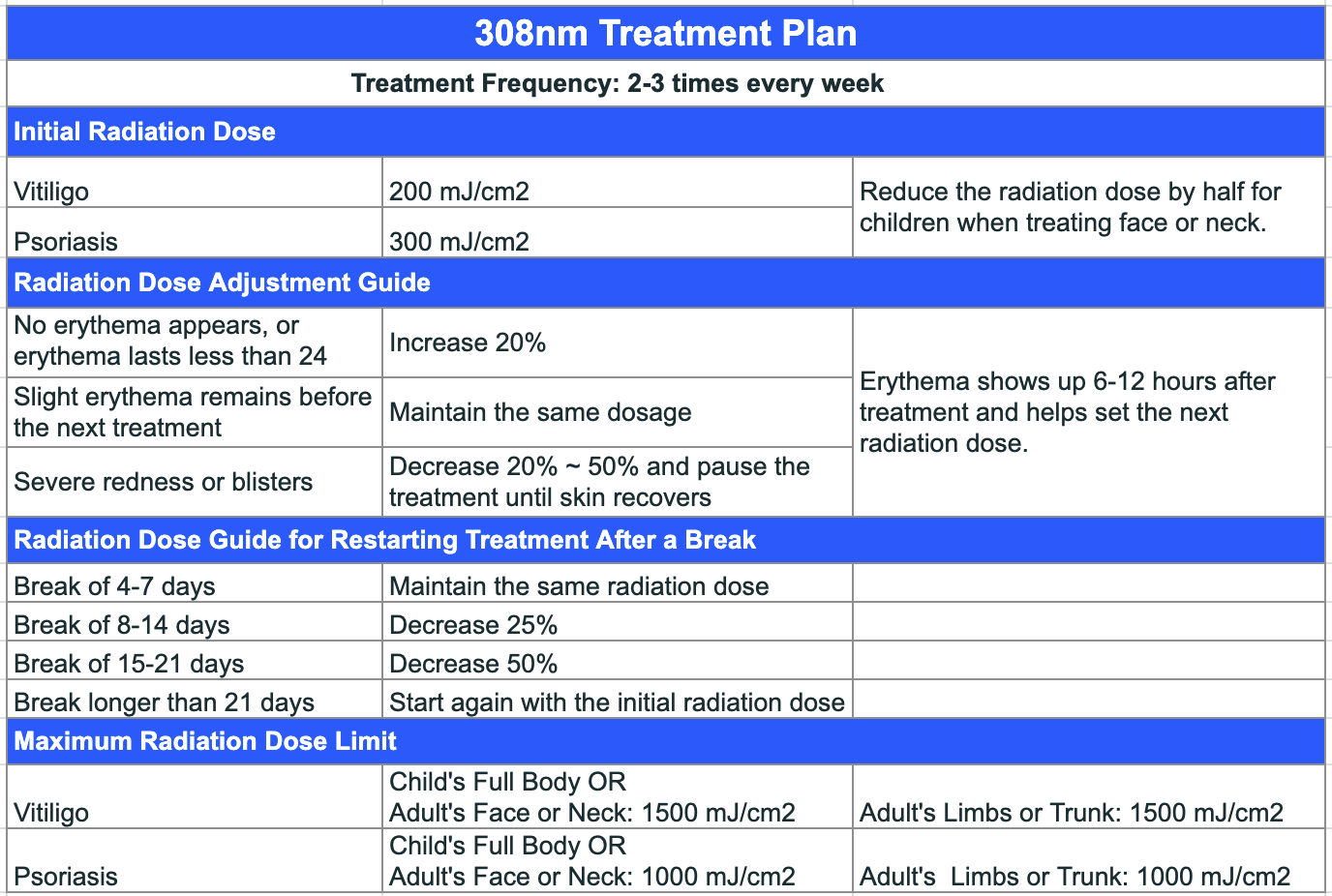

308nm Excimer LED Treatment Plan
-
Kernel KN5000C Intensity: 60 mw/cm²
- MED Formula: Irradiation Time (seconds)=Dose (mJ/cm²) ÷ Lamp Intensity (mW/cm²)
14-Day Return Policy
- Customers may return eligible products within 14 days of delivery for a refund or exchange.
- For hygiene and safety reasons, opened or used products cannot be returned unless defective or faulty.
- A 20% restocking fee applies to all returns except defective. We will repair, replace, or refund defective items free of charge.
- For full details, please refer to our Return Policy under the Warranty tab.
Comparison Chart
| Product Model | KN4003BL | KN4003B3 | KN4003B4 |
KN5000C | KN308E |
 |
 |
 |
 |
 |
|
|
Setting |
Home and travel |
Clinics, hospitals and home |
|||
|
Name |
Corded, Handheld 311nm UVB Lamp |
Cordless, Handheld 308nm Excimer LED UVB Lamp |
Cordless, Handheld 308nm Excimer LED UVB Lamp PRO |
Excimer Laser 308nm - Highest Intensity and Precision UVB Lamp |
Excimer LED 308nm - High-power UV Lamp |
|
Price |
$288.4 |
$664 |
$773 |
$2,999.48 |
$3,039 |
| Application | Vitiligo on smaller skin areas, such as face, neck and hands |
– Patients with a longer history of more severe Vitiligo conditions. – Patients who have not seen any improvement from other treatments. |
|||
| Lamp Intensity | 4.5mw/cm² | 30 mw/cm² | 40 mw/cm² | 50 mw/cm² | 60 mw/cm2 |
| Treatment Size | 8.5 in² ± 10% | 1.24 in² ± 10% | 1.24 in² ± 10% | 3.1 in² ± 10% | 3.1 in² ± 10% |
| Light Source | 1 x 311nm UVB Light 311nm ± 3nm | 1 x UV LED | 1 x UV LED | XeCl Excimer Laser 308nm ± 2nm | High-power UV LED |
| Treatment Speed | Fast | 6.7X Faster | 8.8X faster | 10X Fastest | 10X Fastest |
| Working Mode | Time | Time | Time and Dosage | Time and Dosage | Time and Dosage |
| MED Test | N/A | No | Yes | Yes | Yes |
| Work Distance | 1.18 in ± 0.20 in | 1.18 in ± 0.20 in | 1.18 in ± 0.20 in | 1.18 in ± 0.20 in | 1.18 in ± 0.20 in |
| Power source | Corded | Cordless, Built-in Rechargeable Battery, up to 35 minutes | Cordless, Built-in Rechargeable Battery, up to 25 minutes | Corded | Corded |
| Light Source Lifespan | ≤ 500h | ≤ 3,000h | ≤ 3,000h | ≤ 500h | ≤ 30,000h |
| Package | UVB lamp, cord, UV-proof glasses, instruction | KN4003B3, UV Googles, Charging Cable, Dust-proof Pouch, Whipping Cloth, User Manual | KN4003B4, UV Googles, Charging Cable, Dust-proof Pouch, Whipping Cloth, User Manual | KN5000C, cord, 6 x shades, UV-proof glasses, 1 x aluminum case and instructions | KN308E, cord, 6 x shades, UV-proof glasses, 1 x aluminum case and instruction |
Details
Delivery: |
Free shipping 4 - 7 Days |
Application: |
Vitiligo, Psoriasis, Eczema, Pityriasis Rosea, Atopic Dermatitis |
Setting: |
Clinics and Hospitals |
Brand Name: |
Kernel |
Product: |
Portable Excimer LED for Clinics |
Model: |
KN308E |
Certificate: |
FDA Approved |
Wavelength: |
308 nm ± 3 nm |
Light Source: |
High-power UV LED |
Light Intensity: |
60 mw/cm² |
Treatment Size: |
3.1 in² ± 10% |
Treatment Speed: |
13x Fastest |
Treatment Mode: |
Time and Dosage |
Work Distance: |
1.18 in ± 0.20 in |
Built-in MED Test: |
Y |
Mobility: |
Portable |
Built-in Battery: |
N |
Power Source: |
100-240V |
Screen: |
10.4'' LCD touch screen |
Light Source Lifespan: |
≤ 30,000h |
Packing List: |
1 x KN308E, 1 x UV Goggles, 1 x Charging cable, 6 x Interchangeable Tips, 1 x User Manual |
Dimension: |
17.72'' H x 11.81'' D x 9.84'' W |
Product Weight: |
19.84 lbs |
